Tractor Mounted Implements

Disc Plough

Regardless of ground conditions Disc Plough can handle the toughest ploughing jobs.

For extremely hard ground and soil with large roots and other obstructions, one can obtain outstanding penetration performance.

For soft sticky ground and sandy soil depth can be controlled through the built-in depth control. The under frame and unit-to-unit clearances are adequate to cope with trashy conditions. Perfect alignment of the sub-beams carrying the Disc bottoms is maintained by virtue of the frame construction.

An adjustable and spring-loaded furrow wheel takes care of the side draft and the implement moves smoothly. Disc till angle can be varied in three stages to perform on various types of soils.

	2 BOTTOM	3 BOTTOM	4 BOTTOM	5 BOTTOM (4+1)
FRAME	Extra Heavy Duty Tubular Frame (168mm OD, 146 ID)	Extra Heavy Duty Tubular Frame (168mm OD, 146 ID)	Extra Heavy Duty Tubular Frame (168mm OD, 146 ID )	Extra Heavy Duty Tubular Frame (168mmOD,146 ID)
MOUNTED	CAT – II	CAT – II	CAT – II	CAT – II
LENGTH	1800 mm	2400 mm	3000 mm	3600 mm
WIDTH	820 mm	1040 mm	1260 mm	1480 mm
HEIGHT	1220 mm	1220 mm	1220 mm	1220 mm
DISCS	660 x 6 mm	660 x 6 mm	660 x 6 mm	660 x 6 mm
DISC SPACING	570mm	570mm	570mm	570mm
COLTER DISC	500 x 6 mm	500 x 6 mm	500 x 6 mm	500 x 6 mm
SCRAPPER	6 mm – adjustable	6 mm – adjustable	6 mm – adjustable	6 mm – adjustable
BEARINGS	2 Nos. Taper Roller/disc	2 Nos. Taper Roller/disc	2 Nos. Taper Roller/disc	2 Nos. Taper Roller/disc
WIDTH OF CUT	500 – 550 mm	875 – 925 mm	1150 – 1200 mm	1575 – 1625 mm
WEIGHT	295 Kg (approx)	395 Kg (approx)	495 Kg (approx)	610 Kg (approx)
TRACTOR (HP)	45-50	60-65	75-85	100-110

Specifications
*The weight and working data contained in the present leaflet are supplied for information only and are not binding.

Disc Harrow

Mounted Offset Disc Harrows are simple and sturdy designs and is easy to maintain. It is a compact unit and can be mounted on the mounting arm of the tractor. A spring loaded headstock brace allows easy maneuverability on rough terrains.

Available in 6X6, 8X8 and 10 x10 configurations, Disc size 560 mm.

Rotary Tiller

Suitable for use in dry as well as wet land cultivation.
Suitable for light and medium soil conditions.
Used for loosening and aerating soil up to a depth of Eight inches.
Prepares seed beds quickly and economically.

Available 1 M Tillage Width 1.50m, 1.75m and 2.00m.

Spring Loaded Tillers

Designed for toughest farm conditions, where soil is very hard. The tyne assemblies are spring loaded. The main frame is stronger. All fasteners are high tensile.

Available with 7, 9 or 11 tynes.

MB Plough

Can handle toughest ploughing conditions. Available with 2 or 3 furrows.

Available with 7, 9 or 11 tynes.

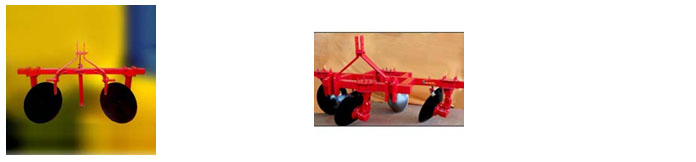

Ridgers

Available in single row and double row configuration with 2 / 4 discs 26” dia x 6mm thick.

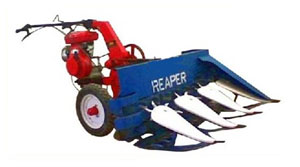

Reaper
