SPECIFICATIONS
Engine Type
Bore X Stroke0
Displacement
Compression Ratio
Net Hp Output
Net Torque
Pto Shaft Rotation
Ignition System
Starting System
Carburettor
Governor System
Air Cleaner
Lubrication System
Fuel Tank Capacity
Oil Consumption
Fuel Consumption

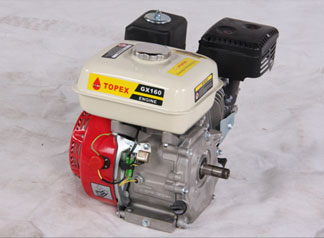

GX 160
Air Cooled, 4 stroke, OHV, Single cylinder
68 mm x 45 mm
163 cc
8.5:1
4.1 HP ( 3.1Kw) at 3600 RPM
10.0Nm at 2500 RPM
Counter clockwise( from PTO Shaft side)
Transistorised Magneto Ignition
Recoil or Electric Start
Horizontal Butterfly type
Centrifugal Mechanical
Dual Element Type
Forced Splash
3.6 L
* 6.8 G/ Kwh
< 395 g/ Kwh
SPECIFICATIONS
Engine Type
Bore X Stroke
Displacement
Compression Ratio
Net Hp Output
Net Torque
Pto Shaft Rotation
Ignition System
Starting System
Carburettor
Governor System
Air Cleaner
Lubrication System
Fuel Tank Capacity
Oil Consumption
Fuel Consumption

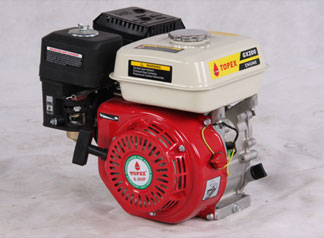

GX 200
Air Cooled, 4 stroke, OHV, Single cylinder
68 mm x 54 mm
196 cc
8.5:1
5.5 HP ( 4.1Kw) at 3600 RPM
12.4Nm at 2500 RPM
Counter clockwise( from PTO Shaft side)
Transistorised Magneto Ignition
Recoil or Electric Start
Horizontal Butterfly type
Centrifugal Mechanical
Dual Element Type
Forced Splash
3.6 L
* 6.8 G/ Kwh
< 395 g/ Kwh
SPECIFICATIONS
Engine Type
Bore X Stroke
Displacement
Compression Ratio
Net Hp Output
Net Torque
Pto Shaft Rotation
Ignition System
Starting System
Carburettor
Governor System
Air Cleaner
Lubrication System
Fuel Tank Capacity
Fuel Consumption

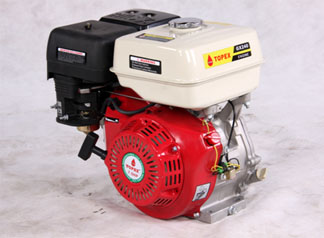

GX 240
Air Cooled, 4 stroke, OHV, Single cylinder
73 mm x 58 mm
242 cc
8.2:1
7.1 HP ( 5.3Kw) at 3600 RPM
15.3 Nm at 2500 RPM
Counter clockwise( from PTO Shaft side)
Transistorised Magneto Ignition
Recoil or Electric Start
Horizontal Butterfly type
Centrifugal Mechanical
Dual Element Type
Forced Splash
3.6 L
< 395 g/ Kwh
SPECIFICATIONS
Engine Type
Bore X Stroke
Displacement
Compression Ratio
Net Hp Output
Net Torque
Pto Shaft Rotation
Ignition System
Starting System
Carburettor
Governor System
Air Cleaner
Lubrication System
Fuel Tank Capacity
Oil Consumption
Fuel Consumption

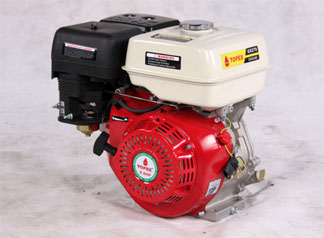

GX 270
Air Cooled, 4 stroke, OHV, Single cylinder
77 mm x 58 mm
270 cc
8.2:1
8.0 HP ( 6.0Kw) at 3600 RPM
17.7Nm at 2500 RPM
Counter clockwise( from PTO Shaft side)
Transistorised Magneto Ignition
Recoil or Electric Start
Horizontal Butterfly type
Centrifugal Mechanical
Dual Element Type
Forced Splash
6.0 L
*6.8 g/ Kwh
< 395 g/ Kwh
SPECIFICATIONS
Engine Type
Bore X Stroke
Displacement
Compression Ratio
Net Hp Output
Net Torque
Pto Shaft Rotation
Ignition System
Starting System
Carburettor
Governor System
Air Cleaner
Lubrication System
Fuel Tank Capacity
Oil Consumption
Fuel Consumption

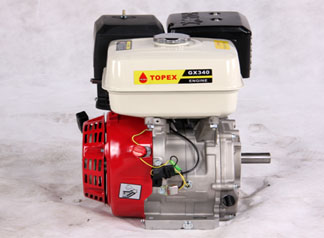

GX 340
Air Cooled, 4 stroke, OHV, Single cylinder
82 mm x 64 mm
337 cc
8.:1
9.5 HP ( 7.1Kw) at 3600 RPM
22.1Nm at 2500 RPM
Counter clockwise( from PTO Shaft side)
Transistorised Magneto Ignition
Recoil or Electric Start
Horizontal Butterfly type
Centrifugal Mechanical
Dual Element Type
Forced Splash
6.5 L
*6.8 g/ kwh
< 395 g/ Kwh
SPECIFICATIONS
Engine Type
Bore X Stroke0
Displacement
Compression Ratio
Net Hp Output
Net Torque
Pto Shaft Rotation
Ignition System
Starting System
Carburettor
Governor System
Air Cleaner
Lubrication System
Fuel Tank Capacity
Oil Consumption
Fuel Consumption

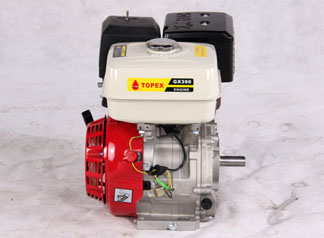

GX 390
Air Cooled, 4 stroke, OHV, Single cylinder
88 mm x 64 mm
389 cc
8.0:1
11.0 HP ( 8.2Kw) at 3600 RPM
25.1 Nm at 2500 RPM
Counter clockwise( from PTO Shaft side)
Transistorised Magneto Ignition
Recoil or Electric Start
Horizontal Butterfly type
Centrifugal Mechanical
Dual Element Type
Forced Splash
6.5 L
*6.8 G/ Kwh
< 395 g/ Kwh
SPECIFICATIONS
Engine Type
Bore X Stroke
Displacement
Compression Ratio
Net Hp Output
Net Torque
Pto Shaft Rotation
Ignition System
Starting System
Carburettor
Governor System
Air Cleaner
Lubrication System
Fuel Tank Capacity
Oil Consumption
Fuel Consumption

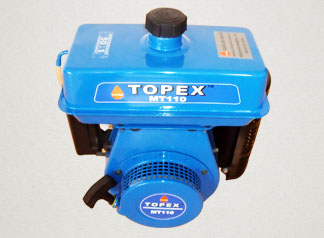

MTE 110
Air Cooled, 2 stroke, Single cylinder
52 mm x 50 mm
106 cc
7:1
4.3 HP ( 3.2Kw) at 5000 RPM
3.0 HP at 3800 RPM
Counter clockwise( from PTO Shaft side)
Transistorised Magneto Ignition
Recoil Start
Horizontal Butterfly type
Centrifugal Mechanical
Half Dry, Element Type
Forced Splash
3.25 L
* 8.0 G/ Kwh
< 370 g/ Kwh
* Because of continous improvements, the specifications are subject to change
