MODEL
Type
Combustion System
Bore X Stroke
Displacement
Compression Ratio
Output / Speed (HP / rpm)
Cooling System
Lubrication System

Starting System

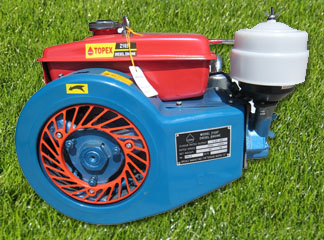

Z165F
Single Cylinder, Horizontal, Stroke, Diesel
Swirl
65 X 70 ( MM)
0.232L
20-22
3.3HP/2600 rpm
Air-Cooled
Centrifugal Lubrication Combined Oil Mist And Splash
Manual

Z165F

MODEL
Type
Combustion System
Bore X Stroke
Displacement
Compression Ratio
Output / Speed (HP / rpm)
Cooling System
Lubrication System

Starting System

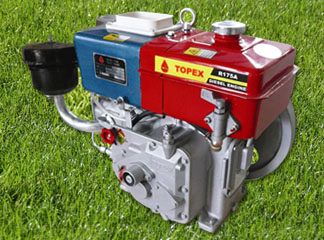

R175A
Single Cylinder, Horizontal, 4 Stroke, Diesel
Swirl
75X 80 ( MM)
0.353L
22-24
6HP/2600 rpm
Water-Cooled
Centrifugal Lubrication Combined Oil Mist And Splash
Manual

R175A

MODEL
Type
Combustion System
Bore X Stroke
Displacement
Compression Ratio
Output / Speed (HP / rpm)
Cooling System
Lubrication System
Starting System

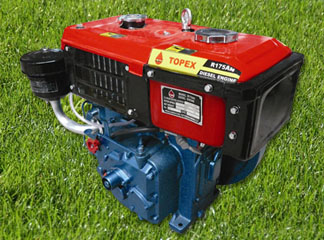

R175AN
Single Cylinder, Horizontal, 4 Stroke, Diesel
Swirl
75 X 80 ( MM)
0.353L
22-24
6HP/2600rpm
Condenser
Combined Pressure & Splash
Electric Start, Key Switch

R175AN

MODEL
Type
Combustion System
Bore X Stroke
Displacement
Compression Ratio
Output / Speed (Hp / Rpm)
Cooling System
Lubrication System
Starting System

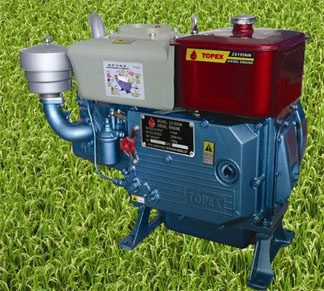

ZS195 ND/ 195NM
Single Cylinder, Horizontal, 4 Stroke, Diesel
Swirl
95 X 115 ( Mm)
0.815 L
20 : 1
12/2200
Radiator
Combined Pressure & Splash
Electric Start, Key Switch

ZS195 ND/ 195NM

MODEL
Type
Combustion System
Bore X Stroke
Displacement
Compression Ratio
Output / Speed (Hp / Rpm)
Cooling System
Lubrication System
Starting System

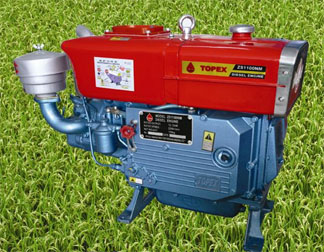

ZS1100NM
Single Cylinder, Horizontal, 4 Stroke, Diesel
Swirl
100 X 115 ( Mm)
0.903 L
20 : 1
15/2200
Radiator
Combined Pressure & Splash
Electric Start, Key Switch

ZS1100NM

MODEL
Type
Combustion System
Bore X Stroke
Displacement
Compression Ratio
Output / Speed (Hp / Rpm)
Cooling System
Lubrication System
Starting System

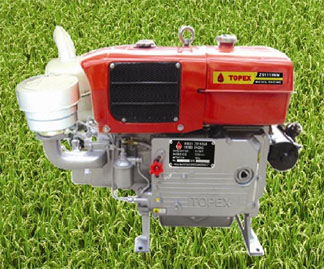

ZS1110 NM
Single Cylinder, Horizontal, 4 Stroke, Diesel
Direct Injection
110 X 115 ( Mm)
1.093 L
17 : 1
18/2200
Radiator
Combined Pressure & Splash
Electric Start, Key Switch

ZS1110 NM

MODEL
Type
Combustion System
Bore X Stroke
Displacement
Compression Ratio
Output / Speed (Hp / Rpm)
Cooling System
Lubrication System
Starting System

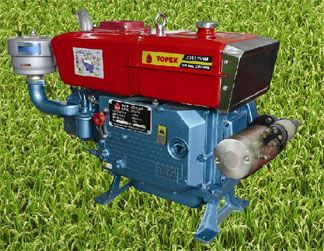

ZS1115NM
Single Cylinder, Horizontal, 4 Stroke, Diesel
Direct Injection
115 X 115 ( Mm)
1.194 L
17 : 1
20/2200
Radiator
Combined Pressure & Splash
Electric Start, Key Switch

ZS1115NM

MODEL
Type
Combustion System
Bore X Stroke
Displacement
Compression Ratio
Output / Speed (Hp / Rpm)
Cooling System
Lubrication System
Starting System

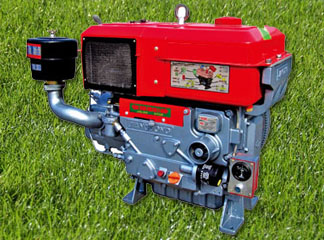

ZS1125M
Single Cylinder, Horizontal, 4 Stroke, Diesel
Direct Injection
125 X 120 (MM)
1.473 L
17.6 : 1
26/2200
Evaporative
Combined Pressure & Splash
Electric Start, Key Switch

ZS1125M

MODEL
Type
Combustion System
Bore X Stroke
Displacement
Compression Ratio
Output / Speed (Hp / Rpm)
Cooling System
Lubrication System
Starting System

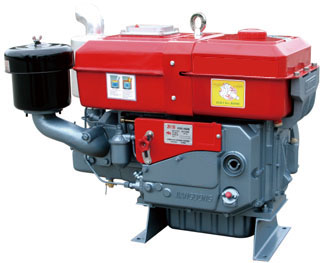

ZS1130M
Single Cylinder, Horizontal, 4 Stroke, Diesel
Direct Injection
130 X 120 (MM)
1.593 L
17.6 : 1
28/2200
Evaporative
Combined Pressure & Splash
Electric Start, Key Switch

ZS1130M

* Specifications are subject to change because of continuous improvements
