Given the right set of matching implements and attachments, the power tiller is capable of performing most of the field operations, be the stationery or mobile type. Its capability in particular for wetland paddy cultivation is unique, which no other machine or animal power can equal.
Power Tillers are capable of performing operations right from primary tillage to transportation of crops which may include ploughing, harrowing, cultivation, planking, ridging and furrowing, sowing, fertilizer application, pumping water, interculture, plant protection, harvesting, threshing and lastly the transport operation. In short the power tiller can render all these services for many types of crop production.
SPECIFICATIONS
ENGINE
MODEL |
TOPEX 130DI |
||
Type |
Horizontal 4 stroke Single cylinder Water cooled Diesel engine. |
||
Combustion Chamber |
Direct Injection (DI) |
||
Bore |
95mm |
||
Stroke |
95mm |
||
Displacement |
673.4 cc |
||
Compression Ratio: |
18:1 |
||
Max. Torque |
4.2kg-m/ 1900rpm |
||
Max.HP as per IS 13539 1996 |
13.0 HP@2400rpm. |
||
S.F.C.(Specific Fuel Cons) |
192g/hp/hr |
||
Governor System |
Mechanical Centrifugal Type. |
||
Cooling System |
Condenser Type Thermo Siphon cooling System |
||
Starting System |
Hand Cranking |
||
Lighting System |
12 volts / 35 watts |
||
Std. Pulley (DIA) |
100 mm/optional 120mm |
||
Dry Weight |
125 Kgs |
||
FUEL SYSTEM |
|||
Fuel |
High Speed Diesel |
||
Fuel Tank Capacity |
11 ltrs. |
||
Nozzle |
Multihole (4) |
||
LUBRICATING SYSTEM |
|||
Oil Sump capacity |
2.4 ltrs. |
||
Type of Lubricating System |
Force Feed type Trochoid Pump |
||
Air Cleaner |
Multistage stage oil bath type with cyclonic per cleaner |
||
TILLER |
|||
MODEL |
CT 85 |
||
Type |
Side drive rotary transmission |
||
Forward: |
6 Speeds |
||
Reverse |
2 Speeds |
||
Rotary: |
2 Speeds ( Optional 4 Speeds) |
||
Clutch: |
Multiple Plate, Dry disc type |
||
Brake: |
Hand operated internal expanding metalic Shoe Type. |
||
Weight |
280 Kgs. |
||
PERFORMANCE |
|||
Tilling Width |
600 mm maximum |
||
No. of tynes |
18 |
||
Tilling Depth |
150mm maximum |
||
Plough Depth |
220mm maximum |
||
Speeds |
|||
Forward: |
|||
|
|||
Gear 1L |
|
||
2 |
|
||
3 |
|
||
4 H |
|
||
5 |
|
||
6 |
|
||
Reverse: |
|||
1L |
|
||
2 H |
|
||
OVERALL DIMENSIONS |
|||
Length * Width * Height |
2320 mm x 810 mm x 1300 mm |
||
:: Because of continous change in technology and development, the specs keep on changing with every improvement |
It is ideally suited for small farm holdings and for small and marginal farmers who cannot afford big size investment in Farm Mechanization. Our Mini Harvester helps them in recovering better and timely yield from their Rice farms with minimal losses. The quality of rice and broken percentage is better controlled.

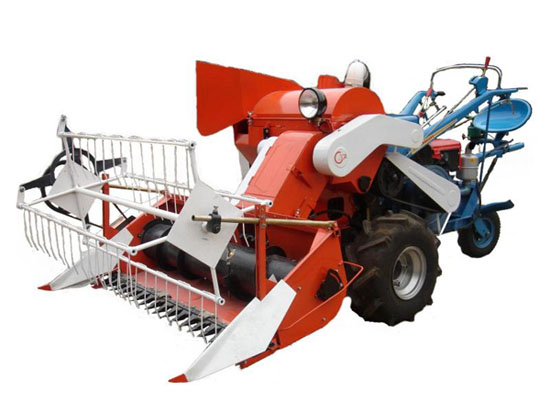

TOPEX 4LD–130 Self-Propelled Full-Feeding Mini Combine Harvester
Specifications:
|
4LD-130 |
Harvesting Capacity |
0.07 ~ 0.15 Ha./H |
Overall Dimensions (L x W x H) |
3770×1554×1620 mm |
Weight |
550 kg |
Engine |
|
Model |
S1100N |
Rated Power |
15/2200 hp/rpm |
Cooling |
Water Cooling, Hopper or Condenser type |
Fueling Consumption |
250.2 g/kw.h |
Chassis |
|
Type |
DF-15 |
Rubber Wheel Tyre size |
24 x 10 – 10 |
Rear Wheel – Rubber wheel size |
4.00-8 |
Header |
|
Cutting Width |
1300 mm |
Feeding Capacity |
0.6 kg/s |
Type of Lifting |
Hydraulic |
Cleaning |
Sieving + Suction |
Grain Tank |
N/a |
Total Loss |
≤3.0% |
Breakage |
≤1.0% |
Impurity |
≤7% |
Specifications are subject to change without prior notice.
